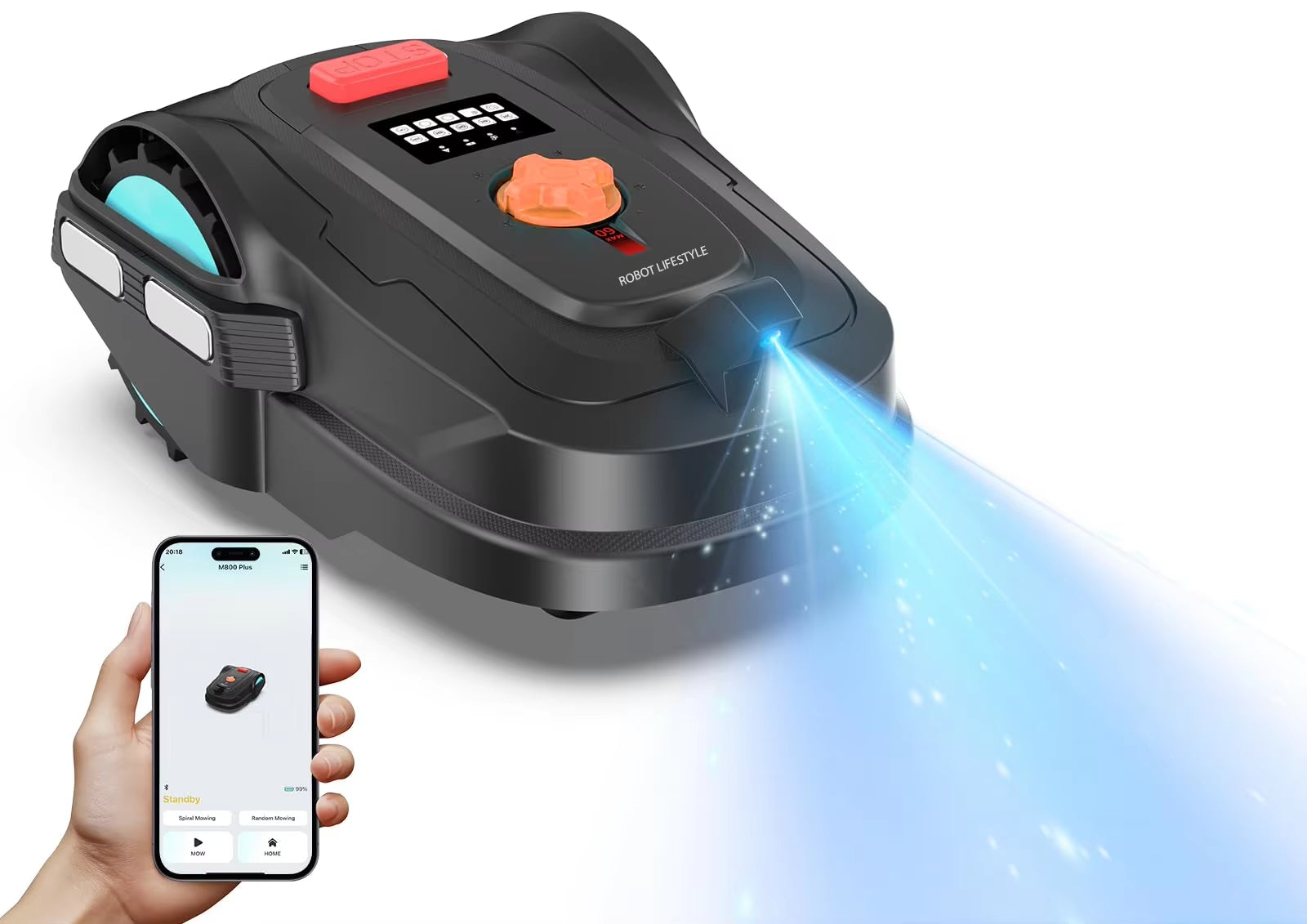

Upgarde Robot Lawnmower Garden without Perimeter Cable Wire, App Control, Visual Sensor, Intelligent Robotic Lawn Mower 1000Sqm
Special Note
The buyer is responsible for customs clearance and payment of taxes. Of course, we can provide customs clearance and door-to-door delivery services in Russia,UK, European Union, Australia, Saudi Arabia, The United Arab Emirates, Oman, Bahrain, Kuwait, Jordan, Morocco, Iraq, Lebanon,Qatar That is DDP mode.

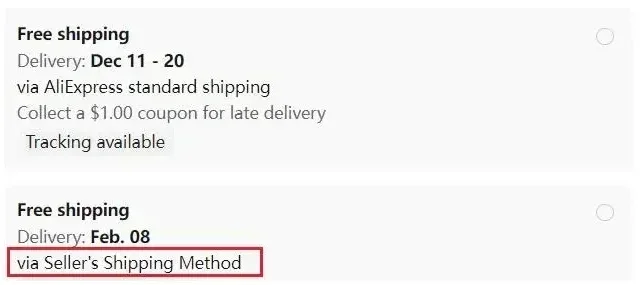

Please chose seller's shipping Method when you place order and contact customer service for details. Please note our tracking number is tracking avaliable.
Wechat/Whatsapp: +8613153231319

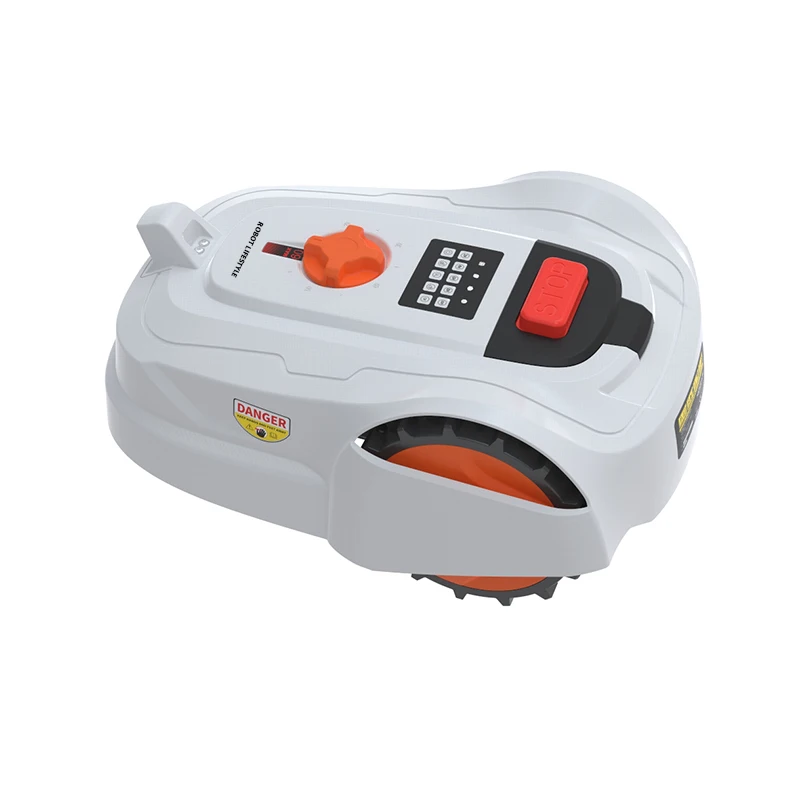

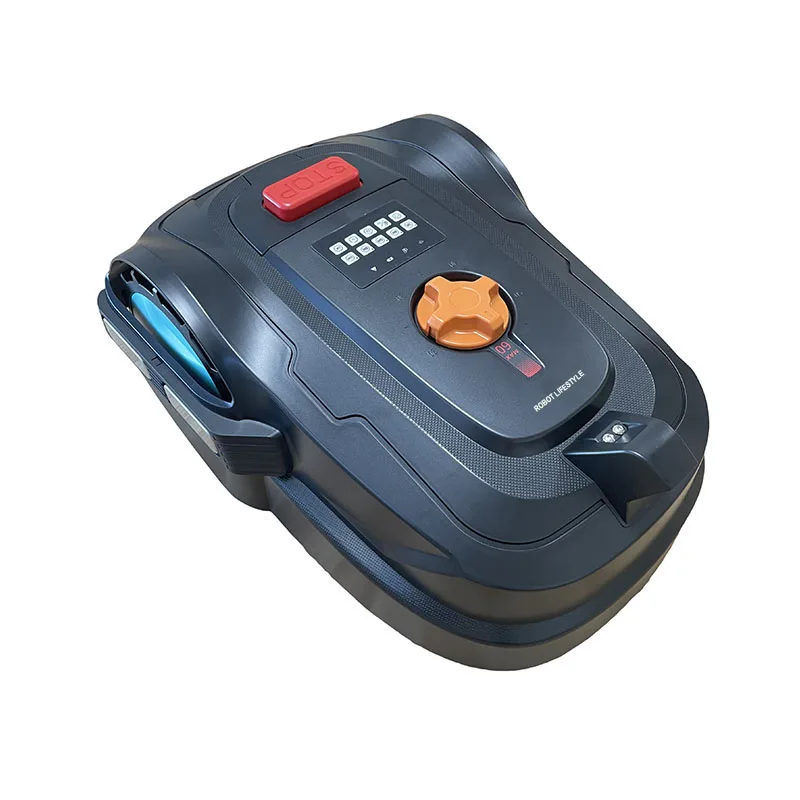

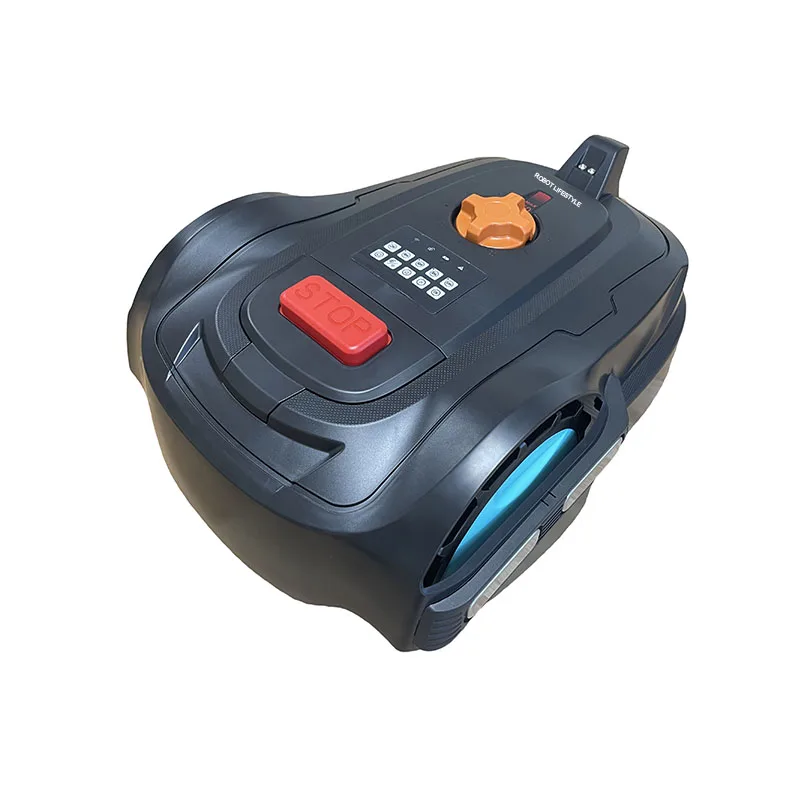

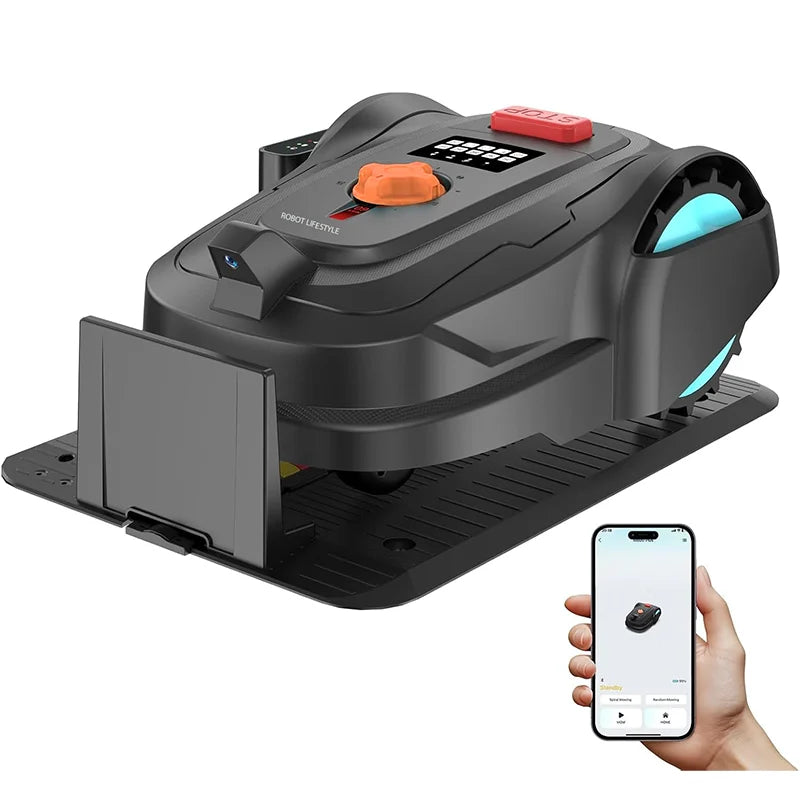

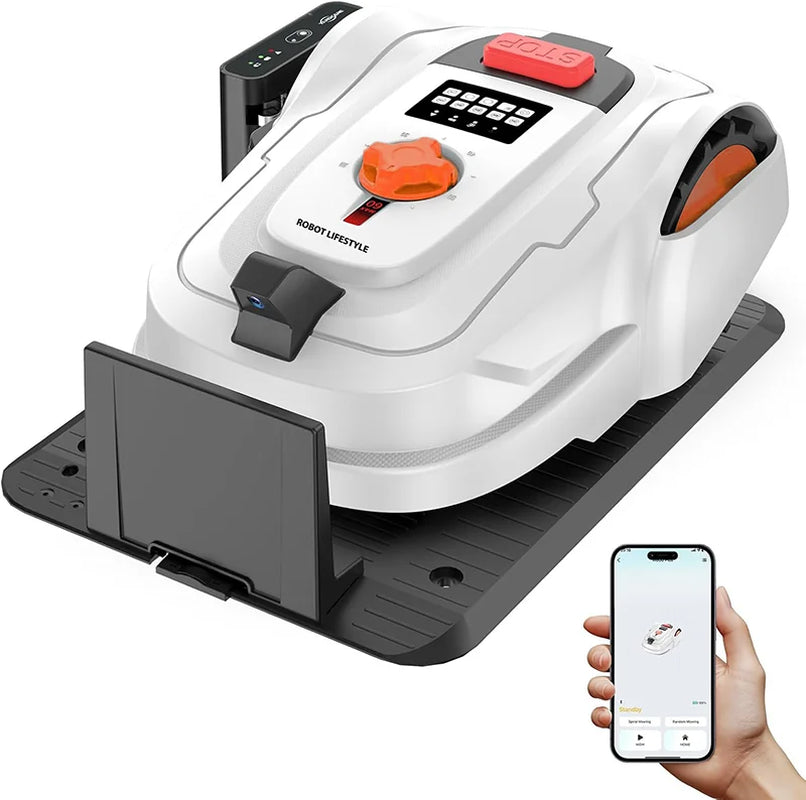

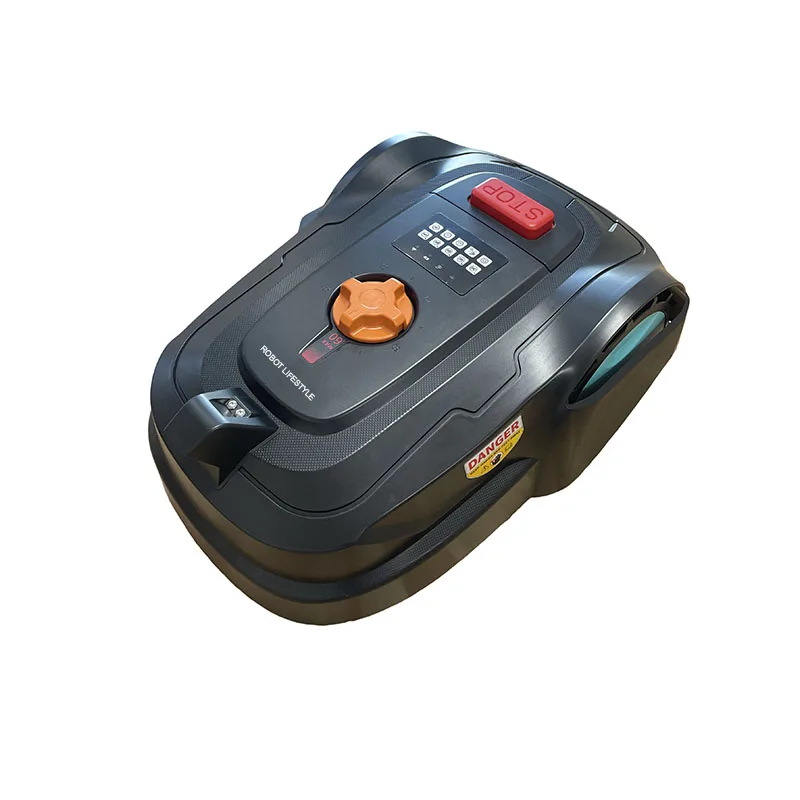

Robot Lawnmower No Perimeter Wire, App Control, Visual Sensor, Intelligent Robotic Lawn Mower 1000sqm Automatic Charging
Specification
Model: TY506
Function setting: LED Keyboard
Cutting Height setting: app control
Charging Interface Type: Sideward Charging Interface
Obstacle Detection: Intellingent resistance detecion
Safeguard: Liftoff / Slant / Emergency Stop
Battery Setting: Buily-in Battery
Boundary Collision: YES
Rain Sensor: YES
Motor Type: BLDC
PIN Setting: YES
Gyroscope: YES
Spiral Cut mode: YES
Straight Cut mode: YES
Emergency STOP Switch: YES
Cuts to Edge: YES
Self- charging management: YES
Virtual line abnormal alarm stopped: YES
Max cutting grass area:1000m² (6500sq ft)
Multi Area Mowing: 4 Area
Cutting width: 180mm
Cutting height: 20-60mm

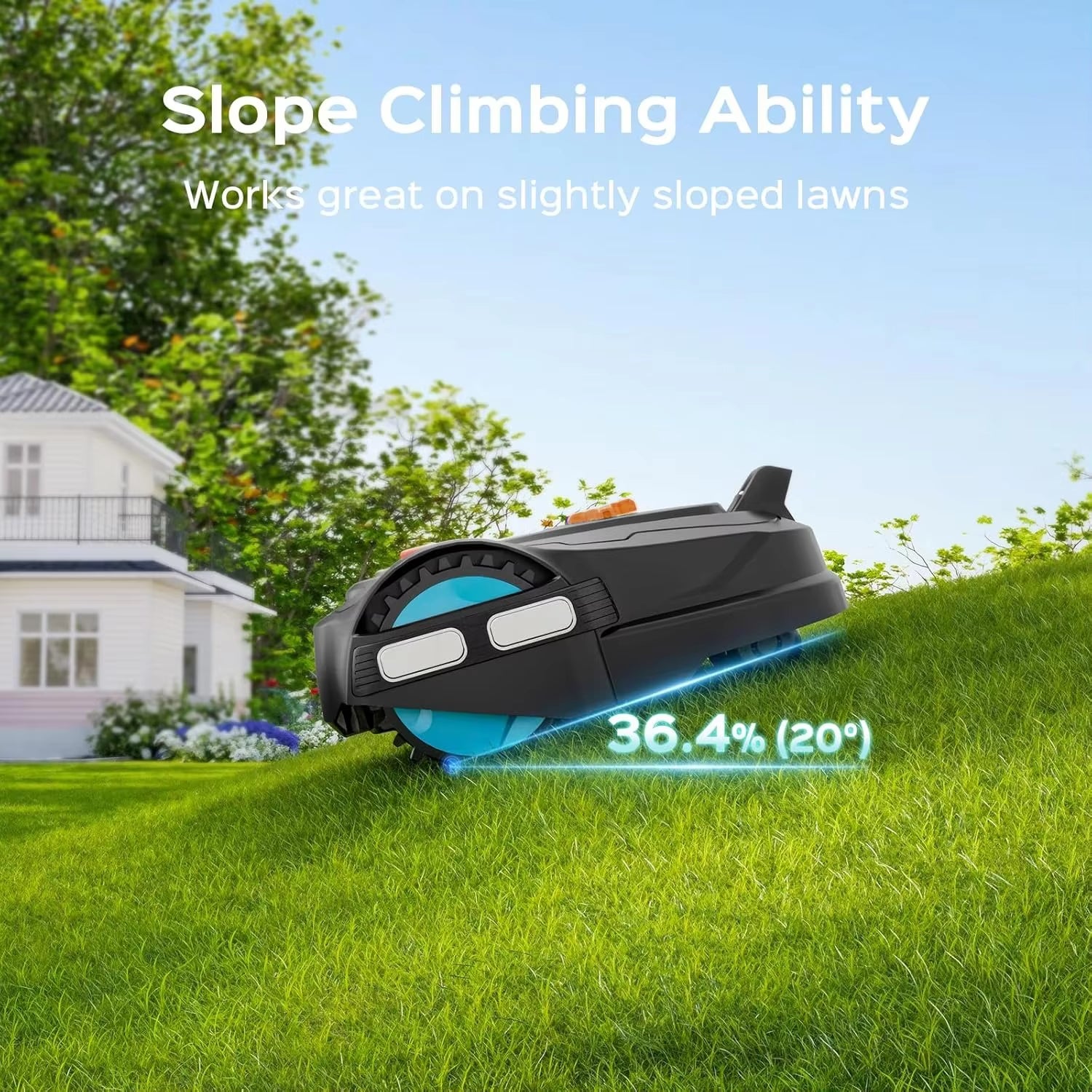

Hill capabilty: Max slope 20 degree
Charge station
Water proofed: IPX4
Input: 100-240V, 50/60Hz, 36W
Output: 20V 1.8A
For 4.0Ah battery pack, Charging time: 150mins
Accessory
Built-in Battery on Lawnmower: 4.0Ah
Max Mowing Area: 1000sqm
Auto Charging
Visual Sensor+AI: Wire free
Smart Obstacle avoidance
Manually cutting height adjustment
Rain Sensor
Easy to operate
Net Weight: 9.5KG
CTN measurements: 630*520*320mm

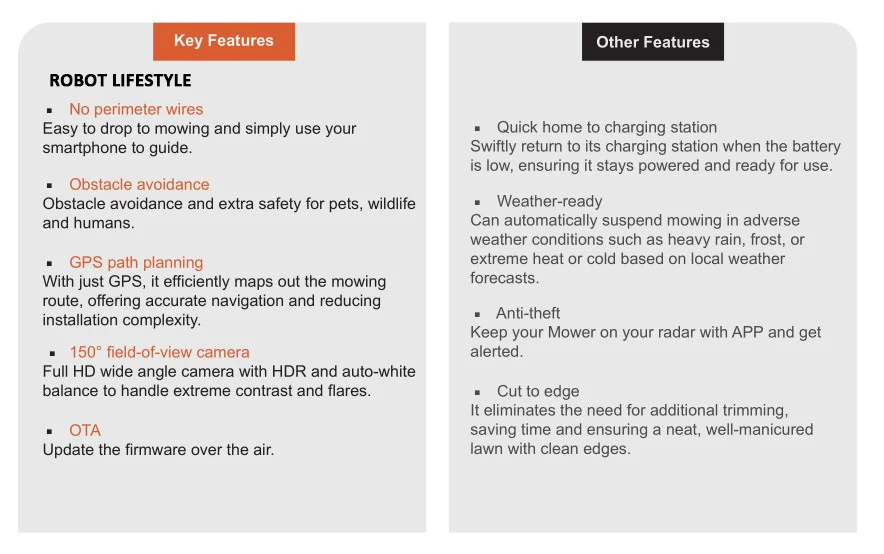

ROBOT LIFESTYLE Key Features
No perimeter wires
Easy to drop to mowing and simply use your
smartphone to guide.
.
Obstacle avoidance
Obstacle avoidance and extra safety for pets, wildlife
and humans.
.
With just GPS, it efficiently maps out the mowing
route, offering accurate navigation and reducing
installation complexity.
. GPS path planning
150° field-of-view camera
Full HD wide angle camera with HDR and auto-white
balance to handle extreme contrast and flares.
.
Update the firmware over the air.
WARNING!
If the mower makes an abnormal sound, abnormally vibrates, or signals an
alarm, press the STOP button immediately.
WARNING! DO NOT touch moving dangerous parts before the mower is powered off.
Warning! Do not touch moving dangerous parts before they have come to a complete
standstill.
Warning! Ensure that you always wear sturdy shoes and long trousers when operating
the machine.
Warning! Cut off the power:
Before blocking it;
Before the machine is tested, cleaned or processed;
Before cleaning foreign objects in the machine
When the machine starts to shake violently, please stop the machine immediately for
inspection

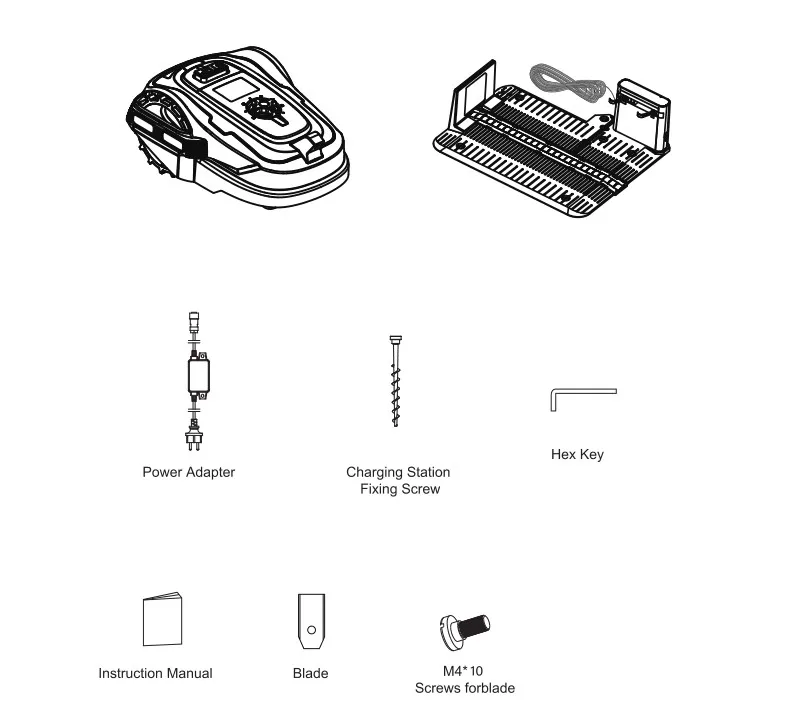

What's in the box?
1 Mower'1
2 Charging Station"1
3 Power Adapter"1
4 Charging Station Fixing Screw"5
5 Blade"3
6 Instruction Manual"1
7 Hex Key"1
8 M4*10 Screws forblade* 3

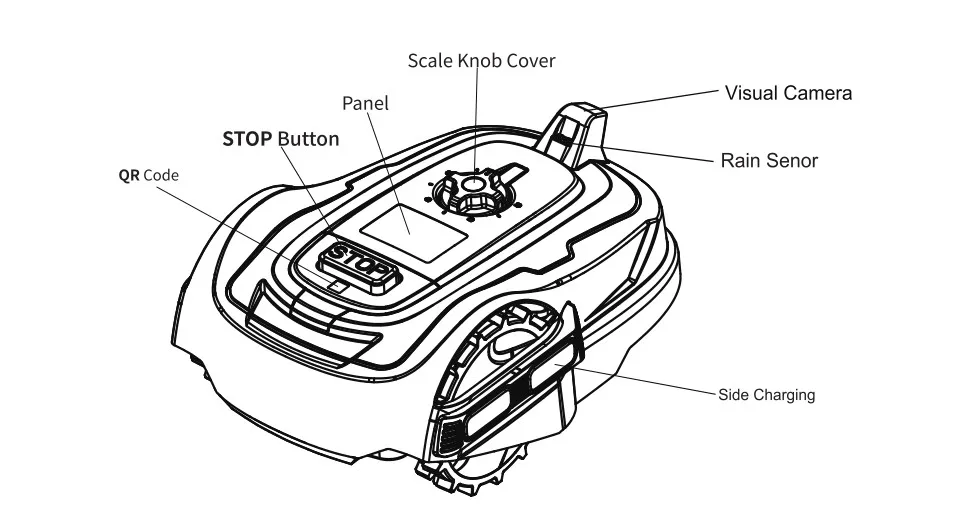

Scale Knob Cover
QR Code
Panel
STOP Button
Visual Camera
Rain Senor
Side Charging

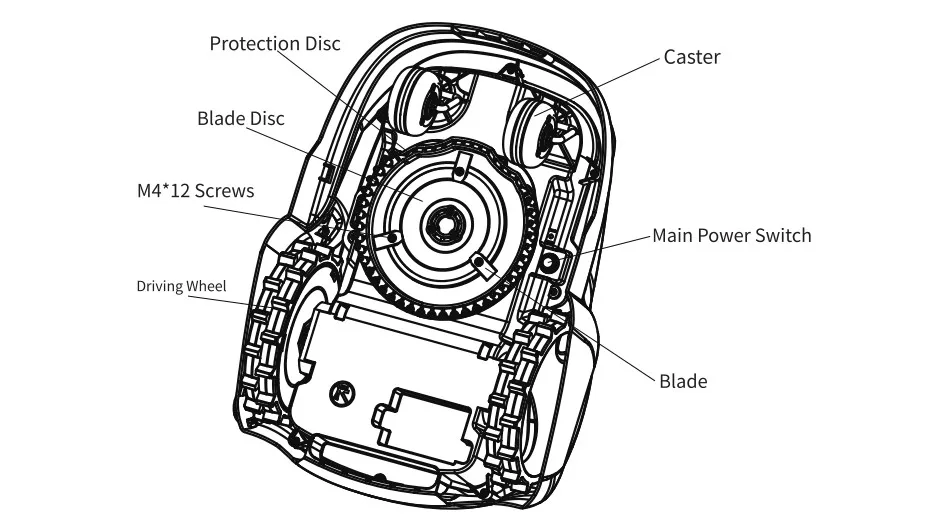

Protection Disc
Blade Disc
Caster
M4*12 Screws
Main Power Switch
Driving Wheel
Blade
Operation

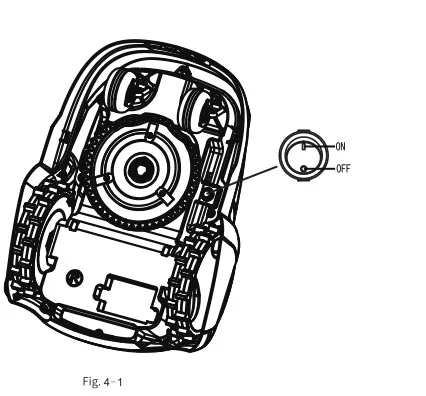

1.Switch On/Off the Main Power (Fig.4-1)
1.Turn the switch to "O" position to turn off the main power.
2. Turn the switch to "|" position to turn on the main power.
2.Start/Stop the Mower
Start:
1.Turn on the main power.
2. Open the panel, long press the power button ⑩ to start.Note:When starting, do not shake the mower to avoid start-upfailure. lf it fails (all indicators are on solid),please start again.Stop:
Press the "STOp" button on the mower.
3.Turn off the Mower
Fig.4-1
First press the "STOp" button to stop the mower, long press the power button ⑩ to stop,then turn off the main power.

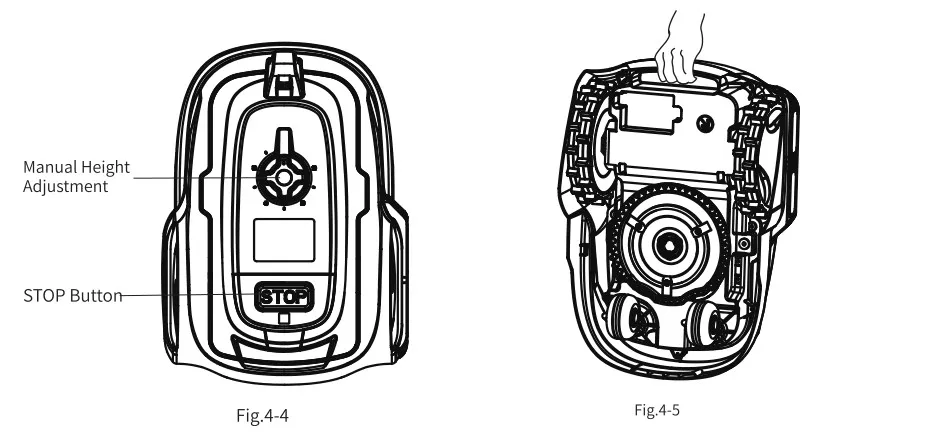

4.Adjust the Cutting Height
Before mowing for the first time, first set the mowing height to 60mm, and then adiust it to the desired heightwhen the whole lawn is relatively flat.
Clockwise rotation to increase the cutting height;counterclockwise to decrease the cutting height (Fig 4-4).The cutting height of the mower can be adjusted from MIN (20 mm) to MAX (60 mm).
5.Carry the Mower
Under the mower, a lifting handle is reserved for easy one-handed handling of the mower (Fig.4-5)
6.0perate the Mower

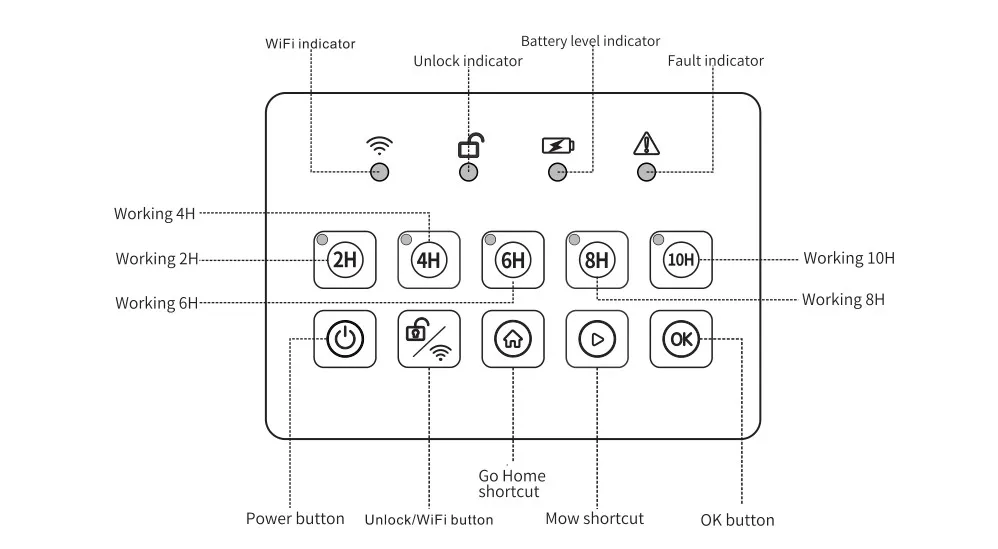

1.Introduction of Control Panel
WiFi indicator
Battery level indicator
Unlock indicator
Fault indicator
Working4H
Working2H
Working6H
Go Homeshortcut
Power button
Unlock/WiFi button
Mow shortcut
IOH
Working 10H
Working 8H
OK button
2.PanelIndicator
Wi-Fi Button: Long press 3-5 sec resets Wi-Fi settings - Enables EZ mode or AZ ModeIf already connected to the app, long pressing the Wi-Fi button releases the connection.If not connected before, long pressing the Wi-Fi button ,the device should go to either EZ/AZ mode
Wi-Fi LED: to indicate the Wi-Fi connectivity status
If connected: Stays solid and ONIf blinking twice per sec: ready for connection(EZIf blinking once per sec: ready for connection(AZ)lf Off: the WVi-Fi module is idle
Unlock indicator: Continuous green light-UnlockedGreen light flashing-Locked
Battery level indicator (at charging station): Continuous green light - Full charged
Green light flashing -in charge
(Not at charging station): Continuous green light - Battery capacity 25%
Continuous red light - Battery capacity <25% (when capacity is below 20%, charge at home autonomously.)
Fault indicator: The number of times the red and green light flashes indicates the error code.
8.Mobile APP
The User can download operation APP through the Google Play Store (Android) or the Apple Store (iOS)
Please check the APP Operation Guide.
